RY thermal oil pump

The RY thermal oil pump has a reasonable structure, excellent performance, and convenient use. Suitable for conveying high-temperature liquids without solid particles. The temperature of use depends on the material of the main components in contact with the medium

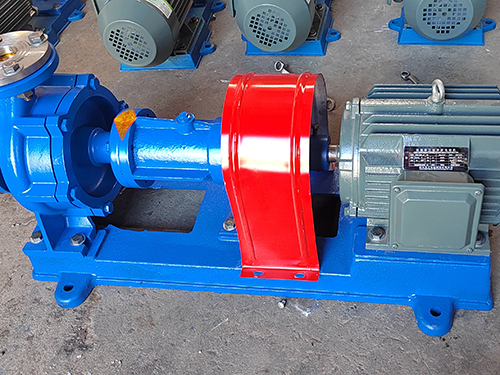

The RY thermal oil pump has been repeatedly designed and improved by our company's technical department. Through practical experiments, it has been proven that our new generation RY series thermal oil pump can completely reject the phenomenon of medium leakage under normal use! Especially for media with strong permeability, such as media like carbon nine oilThe RY type hot oil pump is a single-stage cantilever structure divided into foot support and center support. The pump's intake is axial suction, and the outlet is vertically upward from the center. The pump and drive motor are assembled on the same base through elastic couplings. The entire unit does not require a cooling systemThe RY series thermal oil pump is mainly composed of a shell, rotor, bearings, seals, and other parts. It adopts a packing sealing structure and is equipped with a temperature resistant oil seal, which plays an auxiliary sealing role. The pump and motor are connected by a three jaw elastic couplingThe RY thermal oil pump has changed the traditional structure of the thermal oil pump in design, adopting a natural cooling method to reduce the volume of the pump, making the structure simple and saving operating costs

Functional features of RY thermal oil pump:

(1) RY thermal oil pump is an excellent substitute product developed on the basis of digesting and absorbing foreign oil pumps. Its basic structural form is a single-stage single suction cantilever foot support structure. The intake of the thermal oil pump is axial suction, and the outlet is vertically upward from the center, installed on the base together with the motor.

(2) The support of the RY hot oil pump adopts a structural form of double end ball bearing support. The front end is lubricated with lubricating oil, the rear end is lubricated with lubricating grease, and there is a guide pipe in the middle for observing the sealing situation and recovering heat transfer oil at any time(3) The RY hot oil pump adopts a self heating heat dissipation structure, changing the traditional water cooling structure, making the structure simple, small in size, saving operating costs, powerful, and excellent in use(4) The RY hot oil pump adopts a combination of packing seal and mechanical seal, which has good thermal adaptability. The mechanical seal uses hard alloy material with good mechanical strength and performance, which protects the sealing performance under high temperature conditions(5) The RY hot oil pump adopts third-generation polytetrafluoroethylene (PTFE) as a lip seal, which has made a leap in sealing performance, improving its excellent performance by 25 times compared to rubber seals
