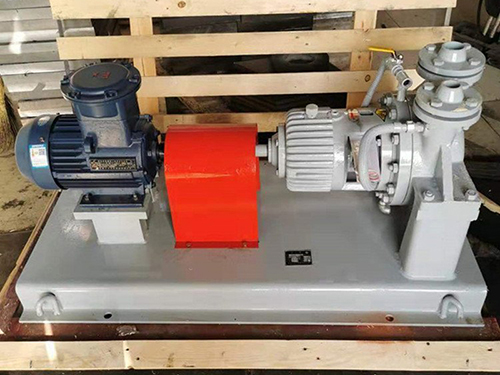

AY high-temperature insulation pump

AY high-temperature insulation pump can be widely used for transporting petroleum and its products without solid particles (abrasives), process water, and other media in petroleum refining, petrochemicals, oilfield gathering and transportation, rubber processes, etc

The AY high-temperature insulation pump was renovated and redesigned by our company in combination with our peers. It is a new product developed to meet the needs of modernization construction and adapt to the new generation of energy-saving equipment as soon as possible. It has the following characteristics:

First, the degree of generalization of components is good, and the standard parts are shared by several series of products

Secondly, the original 35, 50, and 60 bearing bodies were replaced with 45, 55, and 70 bearing bodies, respectively, to improve the quality of the bearing body componentsThirdly, the hydraulic flow part adopts the hydraulic model of a high-speed energy-saving pump, which has an average efficiency of 0.5-0.8 better than the old Y-type oil pump4. In order to maintain inheritance, the structural type, installation dimensions, and performance parameter range of AY type oil pump should be kept the same as those of Y type oil pump, which is convenient for old equipment_ New renovation5. There are three types of bearings: air cooling, fan cooling, and water cooling, which can be selected according to the different operating temperatures of the pump. Fan cooling is particularly suitable for areas with water scarcity or poor water quality6. Refinement of material selection, with Class II and III materials as the main body, and the addition of cast steel and cast iron as components such as bearing bodies, providing favorable conditions for cold areas, exposed cold areas, outdoor use, and marine useAY high-temperature insulation pumps are divided into six types: single-stage single suction and two-stage single suction cantilever type, single-stage suction cantilever type, single-stage double suction and two-stage double suction two support type, two-stage single suction two support type, etc
