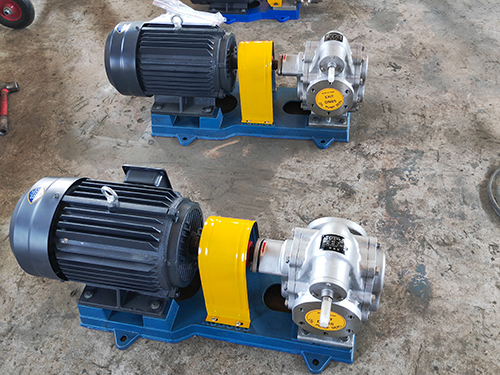

KCB stainless steel pump

KCB stainless steel pump is suitable for conveying lubricating oil or other liquids with properties similar to lubricating oil that do not contain solid particles and fibers, or corrosive high-temperature liquids, with a temperature not exceeding 200 ℃ and a viscosity of 5-15000 cst

● Usage

● Application Scope

It can be used as a transmission and booster pump in oil transportation systems

Can be used as a fuel pump for delivery, pressurization, and injection in fuel systemsCan be used as a hydraulic pump to provide hydraulic power in hydraulic transmission systemsIn the industrial industry, it can be used as a lubricating oil pump

● Structural Characteristics

KCB stainless steel pumps mainly consist of gears, shafts, pump bodies, protective valves, and shaft end seals.

. The gear has high hardness and strength after heat treatment, and is installed together with the shaft in a replaceable shaft sleeve for operation. The lubrication of all parts inside the pump is automatically achieved using the output medium during pump operationThe pump has customized oil discharge and return grooves as needed, which reduce the torque force borne by the gears during operation, resulting in low bearing load, low wear, and good pump efficiencyThe pump is equipped with a protection valve as overload protection. The total reflux pressure of the protection valve is 1.5 times the rated discharge pressure of the pump, and can also be adjusted according to actual needs within the allowable discharge pressure range. However, please note that this protective valve cannot be used as a pressure reducing valve for long-term operation. If necessary, it can be installed separately on the pipelineFrom the extended end of the spindle towards the pump, it rotates clockwise
