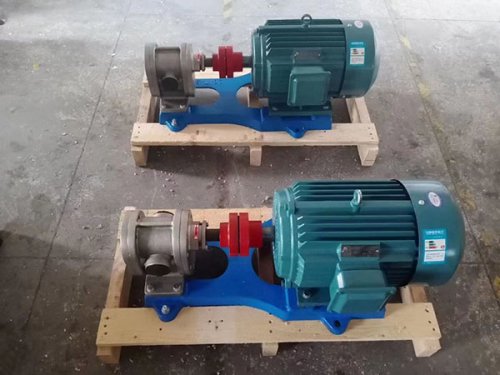

2CY stainless steel pump

2CY stainless steel pump is mainly used for conveying lubricating oil in lubrication systems of various mechanical equipment, suitable for conveying viscosity of 5 × 10-6-1.5 × 10-3m2/s (5-1500cSt), lubricating oil with a temperature below 300 ℃. Stainless steel gear pump can transport non lubricating oils, beverages, and low corrosive liquids. Equipped with copper gears, it can transport low internal point liquids such as gasoline, benzene, etc. In addition to ordinary motors, this series of pumps can also be equipped with performance stable motors of the same specifications according to user needs

● Scope of application

It can be used as a transmission and booster pump in oil transportation systems;

Can be used as a fuel pump for delivery, pressurization, and injection in fuel systemsIt can be used as a lubricating oil pump in various industrial industries

● Structural Characteristics

This series of gear pumps mainly consists of gears, shafts, pump bodies, safety valves, and shaft end seals.

. The gear has high hardness and strength after heat treatment, and is installed together with the shaft in a replaceable shaft sleeve for operation. The lubrication of all parts inside the pump is automatically achieved using the output medium during pump operationThe pump has customized oil discharge and return grooves as needed, which reduce the torque force borne by the gears during operation, resulting in low bearing load, low wear, and good pump efficiencyThe pump is equipped with a safety valve as overload protection. The total reflux pressure of the safety valve is 1.5 times the rated discharge pressure of the pump, and can also be adjusted according to actual needs within the allowable discharge pressure range. However, it should be noted that this Enron valve cannot be used as a pressure reducing valve for long-term operation. If necessary, it can be installed separately on the pipelineFrom the extended end of the spindle towards the pump, it rotates clockwiseHigh flow gear oil pump, gear pump, unloading pump, oil transfer pump, crude oil pump, marine gear pump, etcFlow rate: 1.1m3/h-600m3/h Pressure: 0.28MPa-2.5MPMainly used for high flow oil transportation and unloading in oil fields, oil depots, ports, docks, ships, and other areas
