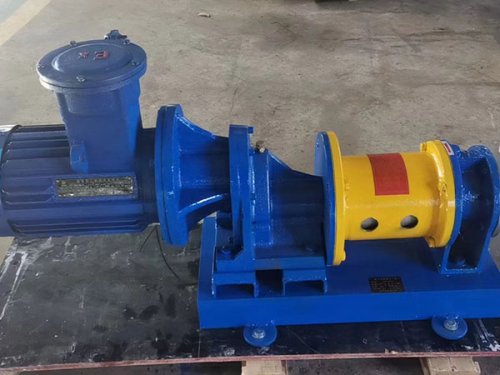

Rotary pump magnetic pump

The rotor pump magnetic pump is mainly suitable for high-risk industries such as petrochemicals, pharmaceuticals, flammable, explosive, and volatile industries. It is used to transport neutral or corrosive high viscosity or low viscosity media such as alcohols, benzene, phenols, lipids, chlorine, etc. No leakage, low speed, can be used in vacuum conveying applications for vacuum discharge pumps, etc. Wide viscosity range for conveying, both high and low viscosity can be transported, with no leakage for life. When conveying high viscosity media or media that is prone to solidification at low temperatures, insulation jacket type can be used

The rotor pump magnetic pump has high conveying viscosity, large flow rate, small volume, good efficiency, wide application, good sales, and good reputation in China and the market. It is a well-known product in China

Installation and precautions for rotor pump magnetic pump:

1. Prepare the concrete foundation according to the foundation size, and bury the ground anchor bolts.

2. Before installation, the pump and motor should be inspected, and all parts should be intact and free of debris inside the pump.

3. Place the unit on the foundation, and place a pair of wedge pads between the bottom plate and the foundation. Use the high-speed pad to align the level of the pump.

4. The suction and discharge pipelines of the pump should have brackets, and the pump should not be used to support the pipelines. The inlet and outlet pipe paths should be consistent with the pump inlet and outlet diameters.

5. When installing the high viscosity rotor pump magnetic pump, the inlet pipe should be connected first, filled with liquid, and then the outlet pipe should be connected to correct the direction.

. The procurement pipeline of the pump needs to be matched with the pump, and the total length cannot exceed 5 meters

6. After installation, rotate the coupling by hand and check for any rubbing.

7. High viscosity rotor pump magnetic pump is strictly prohibited from extracting media containing particles.

8. To prevent debris from entering the pump, a filter should be installed at the inlet, and the filtering area should be greater than 3-4 times the cross-sectional area of the pipeline.

9. A check valve should also be installed on the outlet pipeline for high lift tips to prevent sudden shutdown caused by water hammer damage. 10. It is necessary to protect the installation height of the pump to meet the pump's cavitation allowance, and consider pipeline losses and medium temperature. 11. When the medium temperature is too high, cooling measures should be taken for the machine sealed wardrobe to prevent deformation of the machine seal and cracking of the static ring
