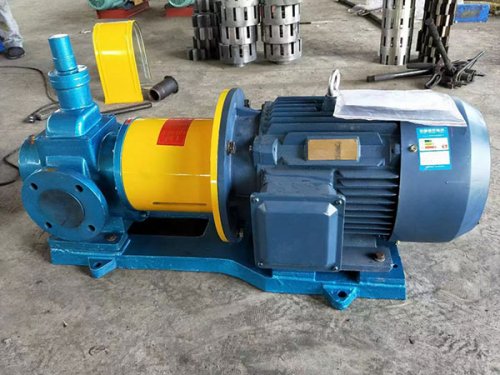

YCB magnetic pump

YCB magnetic pump is a new type of magnetic pump that is redesigned and manufactured based on the advantages of high-temperature insulation pumps on the basis of ordinary magnetic pumps. It is widely used in industries such as petroleum, chemical, pharmaceutical, smelting, electroplating, environmental protection, food, film and television printing, water treatment, installation and maintenance, and can transport temperatures up to 300 ° C; Deg; Flammable, explosive, highly toxic, uncommon precious liquids and various corrosive liquids within C

The delivery pressure of the pump is less than 1.6MPa, and the temperature does not exceed 300 ° C; Deg; C. Does the viscosity not exceed 30x10-6m/ A liquid that does not contain hard particles and fibers. When the pressure of the conveying medium system is greater than 1:6MPa, our company can carry out special design and manufacturingYCB magnetic pump replaces dynamic sealing with static sealing, ensuring that the flow components of the pump are fully sealed, thoroughly solving the problems of running, emitting, and dripping that cannot be avoided by other pump mechanical seals. The magnetic pump uses high-strength engineering plastics, steel, ceramics, stainless steel, etc. as manufacturing materials, so it has good corrosion performance and can prevent the transported medium from being contaminatedYCB magnetic pump usually consists of four main parts: motor, magnetic coupling, and centrifugal pump with water cooling device. Its main feature is to use a magnetic coupling to transmit power. When the electric motor drives the outer magnetic steel of the magnetic coupling to rotate, the magnetic field line passes through the gap and isolation sleeve, acting on the inner magnetic steel, causing the pump rotor to rotate synchronously with the electric motor, and transmitting torque without mechanical contact. At the power input end of the pump, there is no leakage due to the liquid being enclosed in a stationary isolation sleeve without a dynamic seal. This series of high-temperature magnetic pumps creatively install a water-cooling device in the bearing body to ensure that the medium entering the isolation sleeve is kept at a lower temperature. At the same time, the magnetic material is made of rare earth permanent magnet material, which can withstand high-temperature media below 300C and maintain excellent magnetic torque to achieve the purpose of conveying high-temperature media without leakage
