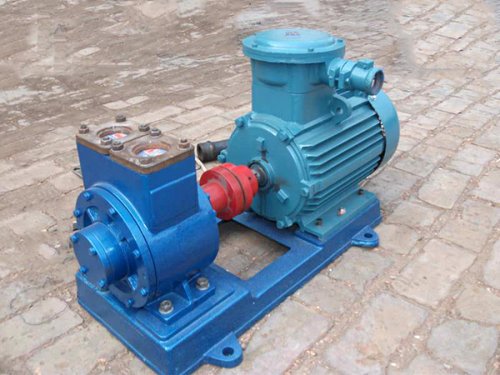

YPB sliding vane pump

The working principle of YPB sliding vane pump is that the sliding vane is installed in a slotted rotor, and the rotor is eccentrically installed in the pump body. When the rotor rotates, the sliding vane slides out of the rotor and slides closely against the surface of the pump body. The cavity formed by the rotor, sliding vane, and pump body changes periodically with the rotation of the rotor, and the space size changes periodically. When the cavity increases, the medium is sucked in, and when the cavity becomes smaller, the medium is discharged, and the process of medium transportation is completed in a cycle.

Characteristics of YPB sliding vane pump:

(1) Strong self suction ability: When used to suction underground tanks, the lifting height can reach 7.5m.

(2)_ The sliding blades inside the pump are subjected to the combined action of centrifugal force, mechanical thrust, and hydraulic pressure, and move closely against the curve inside the stator, thereby enabling the pump to have_ of Rate.

(3) Self adjusting slide with unchanged performance: The slide slides out of the rotor slot, constantly replenishing wear without reducing pump performance. This is fundamentally different from gear pumps.

(4) The ability to transport shear sensitive liquids: hydraulic slides_ The design of the pump reduces the shear force and agitation of the fluid caused by the sliding blades during driving, avoiding the resulting changes in fluid properties.

(5) Easy to maintain and convenient to open the pump cover, remove the old slide and insert the new slide. In just a few minutes, your pump_ Can be put back into work. Daily inspections are equally easy.

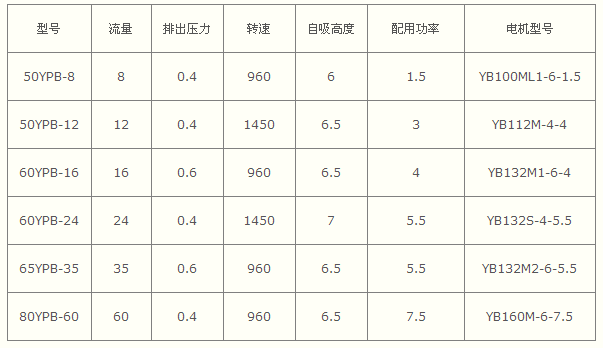

The YPB series sliding vane pump is a positive displacement pump. The YPB series sliding vane pump is mainly used for conveying lubricating oil with medium viscosity of 10-200mm2s, and is also suitable for conveying various chemical products with similar properties. The conveying medium temperature is between 0 ℃ and 120 ℃, and this series of pumps has self suction ability. Used for conveying lubricating oil, crude oil, chemical and food slurries with a viscosity of 10-20000 mm2, and also suitable for conveying various media with similar properties. The temperature of the conveying medium is between 0 ℃ and 200 ℃, and this series of pumps has self suction capacity.

The YPB series self suction sliding vane pump uses a rotor with blades to drive the liquid. The material is made of ductile iron combined with self-lubricating blades. Due to its excellent performance, it can transmit viscous and volatile liquids, and has lower power compared to the same pump. It has advantages in low speed and high flow transmission. YPB sliding vane pump has the above advantages, as well as good self-priming ability, long service life, small volume, and good efficiency. When transporting gasoline, diesel, or similar media, the sliding vane pump has great advantages and is a substitute for self suction centrifugal pumps and copper wheel gear pumps.

This pump is widely used for flow or fixed devices. When paired with a universal joint or hydraulic motor, the pump can be installed on_ On oil tankers, it can also be connected to an electric motor or diesel engine, mounted on a metal floor, and used for_ On high flow refueling machines or mobile refueling equipment. It is a substitute for copper wheel gear pumps.
