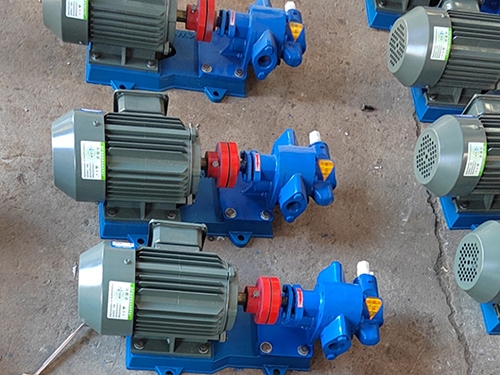

KCB gear pump

KCB gear pump is suitable for conveying solid particles and fibers free, non corrosive, with a temperature not exceeding 80 ℃ and a viscosity of 5 × 10-6-1.5 × Lubricating oil of 10-3m2/s (5-1500cSt) or other liquids with properties similar to lubricating oil

KCB gear pumps mainly consist of gears, shafts, pump bodies, safety valves, and shaft end seals. The gear has high hardness and strength after heat treatment, and is installed together with the shaft in a replaceable shaft sleeve for operation. The lubrication of all parts inside the pump is automatically achieved using the output medium during pump operation. There are customized oil discharge and return grooves inside the pump, which reduce the torque force borne by the gears during operation, resulting in low bearing load, low wear, and good pump efficiencyThe pump is equipped with a safety valve as overload protection. The total reflux pressure of the safety valve is 1.5 times the rated discharge pressure of the pump, and can also be adjusted according to actual needs within the allowable discharge pressure range. However, it should be noted that this Enron valve cannot be used as a pressure reducing valve for long-term operation. If necessary, it can be installed separately on the pipeline. From the extended end of the spindle towards the pump, it rotates clockwiseThe performance parameters of various types of gear pumps are based on the medium viscosity of 4 × Determined at 10-3m2/s (40cSt). The parameter values given in the performance parameter table are applicable to medium viscosity 1 × 10-5-8 × Within the range of 10-5m2/s (10-80cSt), if it exceeds this range, it will be determined separately based on the performance parameter requirements proposed by the user. The discharge pressure given in the performance parameters of various types of gear pumps is the given large working pressure value, within which the pumps can operate normallyInstallation instructions for KCB gear pump: 1. The location for installing the pump should be spacious enough to facilitate maintenance work2. The quality of pump installation has a significant impact on the smooth operation and service life of the pump, so the installation and calibration work needs to be carried out carefully and should not be done hastily3. The installation height, length, and diameter of the pump suction pipe should meet the calculated values, strive for brevity, and reduce unnecessary losses (such as bends); And protect the pump from exceeding its allowable cavitation margin during operation4. The suction and discharge pipelines should have brackets. The pump is not allowed to withstand the load of the pipeline
