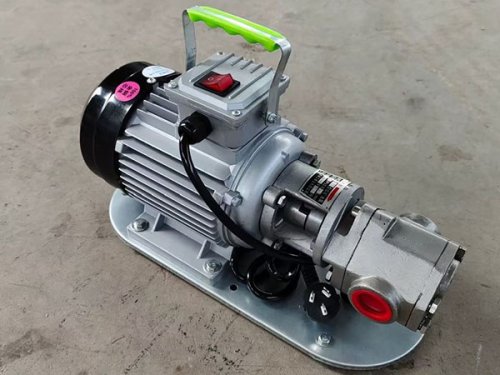

WCB gear pump

The WCB gear pump belongs to a low pressure micro portable energy-saving oil pump,suitable for selling unit oil drum shaft oil without power supply.The pump adopts a structure that separates the bearing from the transmission medium,and the bearing is lubricated separately.The gear is made of alloy steel and adopts special heat treatment technology.The surface hardness of the gear can reach HRC60 or above,which has excellent performance and improves the service life of the pump.Compared with ordinary gear pumps,this pump has strong applicability in conveying liquids with no lubrication,poor lubrication,or containing fine particles,making it a typical soap pump

WCB gear pumps are suitable for oil transportation in refineries,power plants,power stations,substations,and oil depots.The thin oil transportation of the thin oil lubrication system.For example:conveying non lubricating

oils,beverages,low corrosive water,etc

It mainly consists of gears,shafts,pump bodies,and shaft end seals.The gear has high hardness and strength after heat treatment,and is installed together with the shaft in a replaceable shaft sleeve for operation.The lubrication of all parts inside the pump is automatically achieved using the output medium during pump operation.There are customized oil discharge and return grooves inside the pump,which reduce the torque force borne by the gears during operation,resulting in low bearing load,low wear,and good pump efficiencyThe pump is equipped with a safety valve as overload protection.The total reflux pressure of the safety valve is 1.5 times the rated discharge pressure of the pump,and can also be adjusted according to actual needs within the allowable discharge pressure range.However,it should be noted that this Enron valve cannot be used as a pressure reducing valve for long-term operation.If necessary,it can be installed separately on the pipeline.From the extended end of the spindle towards the pump,it rotates clockwise
