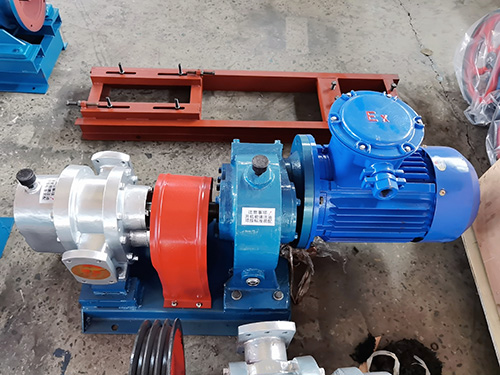

LC high viscosity Roots pump

LC high viscosity Roots pump body, pump cover, shaft, gear, rotor, packing, pressure cover and other components are composed. This high viscosity pump has two forms of belt drive and gear reducer drive, which can be forward and reverse. A skeleton oil resistant seal is installed at both ends of the shaft, and an oil return device is installed in the middle to prevent air intake or oil leakage. The LC Roots pump has the characteristics of low speed, good efficiency, small volume, large flow rate, low power consumption, good self suction ability, no need for oil introduction, and convenient use. It can be widely used for transporting petroleum and petroleum products (gasoline can be replaced with copper pump blades) and for transporting various oils and liquids in factories, such as crude oil, paint, lubricating oil, glass glue, fatty acids, toothpaste, and light alkaline (soap processing) liquids; Food processing can transport various liquids, such as soybean milk, yeast, syrup, etc; Loading and unloading various oil tankers and tankers with suitable speed, good efficiency, convenient use, and the ability to work in both forward and reverse directions

If the medium to be transported needs insulation, such as asphalt, paraffin, etc., LC insulated Roots pump can be selected, and the pump body can be insulated by steam or thermal oilLC high viscosity Roots pumps are made of materials such as cast iron, 304 stainless steel, and 316 stainless steel. If there are special requirements, please inform us in advanceThe LC high viscosity Roots pump is composed of pump body, pump cover, shaft, gear, rotor, packing, pressure cover and other components. The pump has two forms of drive: belt drive and gear reducer drive, which can reverse action. The two ends of the shaft are equipped with skeleton oil resistant seals, and a return oil device is installed in the middle to prevent air intake or oil leakageThe working principle and performance characteristics of a Roots pump are essentially the same as a cam pump, but the rotor is of the Roots type. It can transport liquids with a viscosity of tens of thousands of centipoisesRoots pumps mainly have two rotors with opposite rotation directions located in the pump body, driven by a pair of synchronous gears. The rotor, like the cam pump, has both double bladed, three bladed, and multi bladed types. There are many types of shapes. For the rotor of a Roots pump, it meshes with each other within the pump body, but has gaps. The size of the gap mainly depends on the viscosity of the liquid_ Over_ Viscosity range_ Adjust and increase the gapThe working principle of the double blade Roots pump and the three blade Roots pump. Its principle is similar to that of a gear pump. When the rotor rotates, the liquid is discharged from the suction chamber to the discharge chamber along the pump body shell wall in the space formed with the pump body. When the shaft rotates once, the double blade Roots pump sucks and discharges twice each, while the three blade Roots pump sucks and discharges three times each
