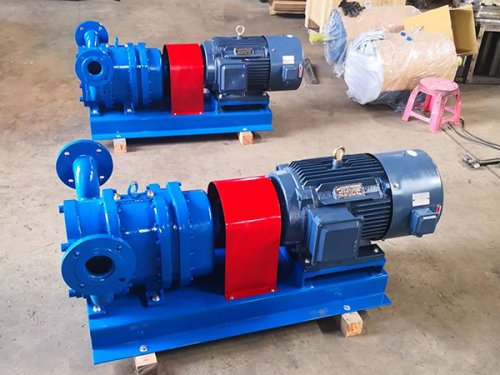

HTLB piston rotor pump

HTLB piston rotor pump, also known as non clogging sewage pump and high viscosity rotor pump, can also be called positive displacement pump, rotary piston pump, piston rotor pump. It is a self suction, valve free, forward discharge pump. The pump has a compact structure, with low shear force on the medium during transportation, stable operation, and low vibration

Product Introduction:

HTLB piston rotor pump, also known as positive displacement pump, rotary piston pump, piston rotor pump, is a self-priming, valveless, forward displacement pump.

. The flow rate is proportional to the rotational speed and can transport various viscous or particulate media. The pump has a compact structure, with low shear force on the medium during transportation, stable operation, and low vibration. HTLB cam piston rotor pump/non clogging sewage pump/high viscosity rotor pump has a wide range of applications, and performs excellently in self suction, gas-liquid mixed transportation, mud transportation, and other aspects; Especially suitable for media with strong corrosiveness, high viscosity, or sensitivity to pulsation. Energy saving is the main feature of this cam rotor pump

HTLB piston rotor pump features:

First, self suction and high head.

Secondly, it can transport mixed media of steam, liquid, and solid3. Low noise, low vibration, long operating life, flexible installation, easy maintenance, power-saving, time-saving, and smooth and reasonable working principle4. Rotary pumps can be used to transport substances with high viscosity, so they are also known as colloid pumpsThe rotor design of Section 5 improves the high permeability of the medium without cloggingVI. Rotary pumps can conveniently transport media with high pressure, such as 150kgf/cm2, suitable for long-distance or high resistance quantitative transportation7. Reverse transportation: The direction of medium transportation can be changed by changing the rotation of the rotor, especially in loading and unloading situations8. The middle isolation chamber is filled with lubricating oil to avoid oil contamination caused by the pumping medium9. Drive shaft: The shaft sleeve can prevent corrosion, and the medium being transported will not come into contact with the shaft10. Convenient Maintenance: It can be repaired on site (without removing it from the equipment), and the overcurrent components can be replaced by opening a cover
