BAW Food and Beverage Pump

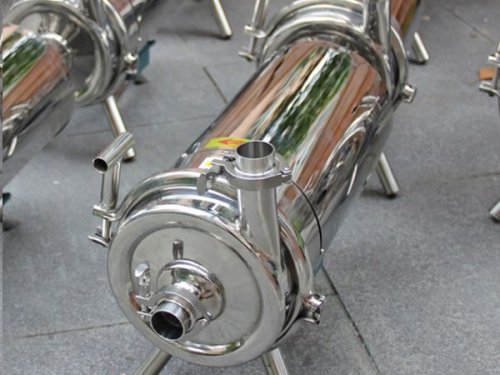

The BAW food and beverage pump mainly consists of a pump body, a pump seat, and a motor. Each part is connected by bolts. The support feet under the bottom plate are adjustable for easy installation, without the need for a fixed installation foundation. During installation, the outlet pipe can be installed in a vertical or horizontal direction according to different needs. This series of pumps is designed with a smooth transition, rigid structure, and thick wall design. In the selection of materials, the pump body, pump cover, impeller and other parts that come into contact with the material are made of AISI316 or AISI304 stainless steel. The mechanical shaft seal is customized with high-quality stainless steel and silicon carbide. Excellent performance and moisturizing properties have been improved, extending the service life. During production, the pump body and impeller are carefully cast as a whole, and all parts are surface treated. During installation, one-on-one fixtures are used to protect the dimensional gaps. The shaft seal adopts an open structure, so even if there is a small amount of leakage at the shaft seal, it can be observed in a timely manner. Even if not detected in a short period of time, it will not overflow the motor. Thus protecting the service life of the electric motor. This series of pumps is well made and not prone to scaling, making them particularly suitable for CIP cleaning

BAW Food and Beverage Pump Product Features:

1. BAW Food and Beverage Pump is equipped with an open impeller design, which achieves high hygiene levels while protecting the medium from damage during transmission.

2. BAW food and beverage pumps comply with both CIP (on-site cleaning) and SIP (on-site specific based on actual conditions) standards to confirm food hygiene3. The BAW food and beverage pump adopts a detachable pump body design, which protects users and is suitable for disassembling and cleaning the pump body. At the same time, it completes the replacement of vulnerable parts such as mechanical seals at a suitable speed4. The BAW food and beverage pump adopts a computer-accurately designed impeller, which maximizes the product's performance while maintaining product accuracy5. BAW food and beverage pumps have lower energy consumption and noise, as they require a smaller NPSH (cavitation residue), which effectively reduces the damage caused by cavitation to the pump
