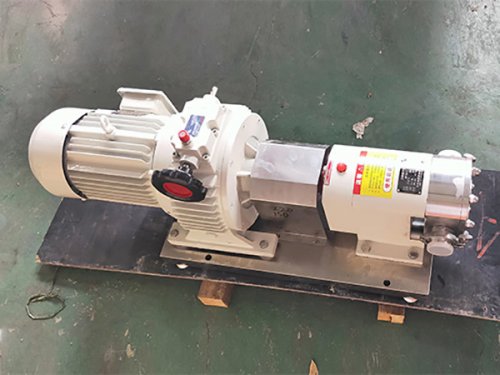

3-2RP cam rotor pump

3-2RP cam rotor pump features:

This pump belongs to the rotary displacement pump, with a long service life, suitable for conveying temperatures from -30 ℃ to+80 ℃, and a viscosity of 30-1.0 × 105cst, a suspended liquid containing solid particles and a medium with high requirements for corrosion and hygiene. The components inside the pump body that come into contact with the medium are made of stainless steel material, and the pump speed can be changed according to the different physical properties of the medium

Usage: Used in industries such as food, beverage, brewing, medicine, daily chemical, petrochemical, etc

3-2RP cam rotor pump structural form:

It is mainly composed of three parts: cam rotor, shaft seal, and gearbox. A pair of synchronously rotating transmission gears drives the convex rotor to rotate to achieve medium transportation.

. The shaft seal can be designed as a packing seal or a mechanical seal according to different operating conditions. Adopting cast iron gearbox, spiral gears, and heavy-duty bearings, with long service life. The main part is a box assembly, which can adjust the rotor clearance without disassembling the gearboxThe material of the O-ring is silicone rubber. When the medium is corrosive, polytetrafluoroethylene is usedFrom the motor to the pump, the pump rotates clockwise
