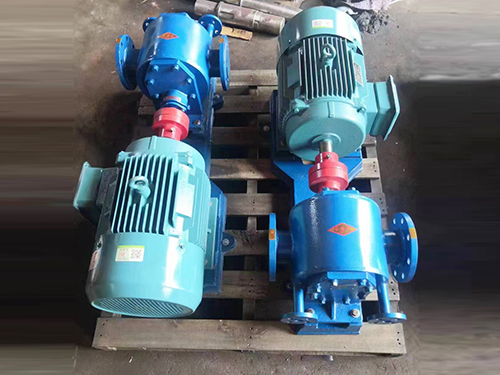

RCB asphalt insulation pump

RCB asphalt insulation pump is suitable for conveying non corrosive, solid particle free, and solidifying media at room temperature, especially suitable for outdoor installation in high-altitude cold areas and occasions where insulation is required during the process. The medium temperature can reach 250 ℃ and the viscosity is 5-1500cs

RCB asphalt insulation pump is suitable for conveying liquids that are corrosive or non corrosive, with high hygiene requirements. The conveying medium does not contain solid particles, with a temperature not exceeding 200 ℃ and a viscosity of 5-1500cSt. The material is 304 stainless steel, such as various chemical raw materials, heavy oil, asphalt, rubber, resin, filling medicine, food, cosmetics, pesticides, detergents, printing and dyeing, brewing, resin, rubber and other industries.

Structural characteristics

The pump body of the RCB asphalt insulation pump is equipped with a hollow interlayer and inlet and outlet flanges, which can be used for heating, insulation, and cooling the transported liquid and pump by media such as thermal oil, steam, hot water, etc. The pump transmission method has two types: motor direct connection and reducer. When the liquid viscosity_ When passing 1500cSt, a gearbox transmission should be used.
