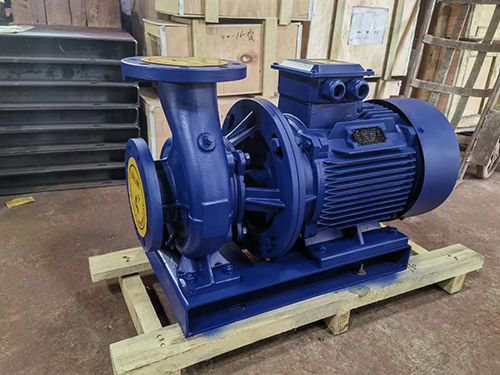

ISW horizontal pipeline centrifugal pump

ISW horizontal pipeline centrifugal pump is used for conveying clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, pressurized water supply in high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration circulation, and equipment matching for cold and warm water circulation in bathrooms. The operating temperature is T ≤ 80 ℃.

Main use:

1. ISW horizontal pipeline centrifugal pumps are widely used in metallurgical, chemical, textile, papermaking, hotel and other boiler hot water pressurized circulation transportation and urban heating systems. The ISWR type uses a temperature T ≤ 120 ℃.

2. ISW horizontal pipeline centrifugal pump is used for conveying liquids without solid particles, which are corrosive and have a viscosity similar to water. It is suitable for departments such as petroleum, chemical, metallurgy, power, papermaking, food and pharmaceutical, and synthetic fibers, with a usage temperature of -20~C~+120 ℃.

3. The ISW horizontal pipeline centrifugal pump is used to transport oil products such as gasoline, kerosene, diesel, or flammable and explosive liquids. The temperature of the medium being transported is between -20 ° C to+120 ° C.

Working conditions:

Working conditions of ISW horizontal pipeline centrifugal pump:

1. The suction pressure is ≤ 1.6MPa, or the high working pressure of the pump system is ≤ 1.6MPa, that is, the pump suction pressure+pump head is ≤ 1.6MPa, and the pump static pressure test pressure is 2.5MPa. Please specify the system working pressure when ordering. When the working pressure of the pump system is greater than 1.6MPa, it should be separately proposed during ordering, so that the overcurrent and connecting parts of the pump can be made of cast steel material during manufacturing.

2. Environmental temperature; 40 ℃, relative humidity; 90%.

3. The volume content of solid particles in the transported medium shall not exceed 0.1% of the unit volume, and the particle size shall be; 0.2mm.

Note: If the medium used contains small particles, please indicate when placing an order so that the manufacturer can use a performance stable mechanical seal.

Product features:

Characteristics of ISW horizontal pipeline centrifugal pump:

Smooth operation: The appropriate concentricity of the pump shaft and excellent dynamic and static balance of the impeller protect smooth operation and excellent vibration.

No leakage: Hard alloy seals made of different materials protect the transportation of different media without leakage.

Low noise: The water pump supported by two low-noise bearings runs smoothly, with little noise except for the faint noise from the motor.

Low failure rate: the structure is simple and reasonable, and the key parts use quality with good reputation; Equipped with excellent and improved fault free working time for the entire machine.

Easy maintenance: Replacing seals and bearings is simple and convenient.

Space saving: The outlet can be arranged in three directions: left, right, and up, making it convenient for pipeline installation and space saving.
