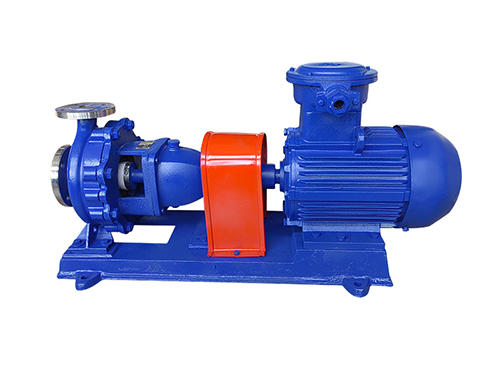

IH stainless steel centrifugal pump

IH stainless steel centrifugal pump is a horizontal single-stage single suction clean water centrifugal pump, used for suction and delivery of clean water and liquids with physical and chemical properties similar to water that do not contain solid particles. It is widely used in industries, agriculture, cities, drainage, fire water supply, etc

The pump has a simple structure, excellent performance, small size, light weight, strong corrosion resistance, low power consumption, and convenient use and maintenanceIH stainless steel centrifugal pump has a wide range of versatility, with a full range of 140 specifications, but only four types of shafts; Bearings, shaft seals, impeller fasteners, etc. of the same specification can be interchanged; There are only four types of suspension prices for the entire series of pumps

IH stainless steel centrifugal pump usage scope:

1. Suitable for urban environmental protection, construction, fire protection, chemical industry, pharmaceuticals, dyes, printing and dyeing, brewing, electricity, electroplating, papermaking, petroleum, mining, equipment cooling, oil tanker unloading, etc.

2. Suitable for clean water, seawater, chemical media liquids with acidity and alkalinity, and slurries with general paste (medium viscosity ≤ 100 millisieverts, solid content up to 30% or less)

Starting, running, and stopping:

Preparation before starting

⑴ Before starting, the pump and the site should be cleaned thoroughly.

⑵ Check if the amount of lubricating oil inside the bracket is appropriate (the oil level is about 2mm from the center line of the oil level gauge) and if the oil level gauge is intact

Before connecting the coupling, check the steering of the prime mover and ensure that it matches the steering arrow of the pump before connecting the couplingAfter installing the mechanical seal, packing, and coupling, the pump shaft can be easily rotated by hand without any collision or friction, and the protective cover of the coupling should be installed properly(5) When using the pump with suction, the pump should be filled or evacuated before starting; The pump is used in a backflow situation. Before starting, the pump should be filled with the conveyed liquid. After removing the empty space in the pump, the gate valve of the discharge pipe should be closedBefore starting, check if the foundation bolts are loose. Whether the pressure cap is skewed and the supply of lubricating oil and cooling water
