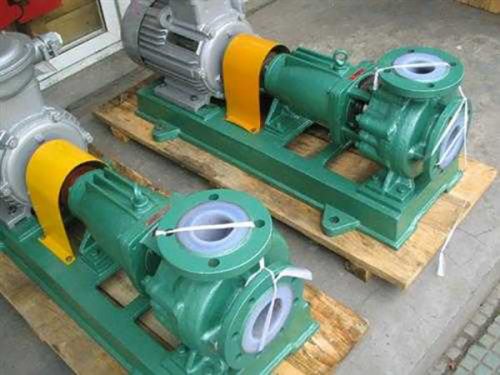

IHF fluoroplastic centrifugal pump

The IHF fluoroplastic centrifugal pump, commonly known as the "dilute acid circulation pump", "dilute acid pump", "acid-base circulation pump", and "lining fluorine pump", is a single-stage, cantilever centrifugal pump. The pump body is lined with fluoroplastic in a metal shell, and the impeller and pump cover are pressed and formed with fluoroplastic wrapped in metal inserts. The installation dimensions meet the standards. This product has a reasonable structure. Widely used in automobile pickling, acid and alkali production, paint spraying process, electrolyte transportation in non-ferrous metal smelting, chlorine water transportation in ion membrane projects, wastewater treatment, electroplating, pesticides and other industries

This pump is suitable for conveying highly corrosive media under harsh conditions such as sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong alkali, strong oxidant, useful solvent, reducing agent, etc. It is currently one of the new equipment in the world mainly based on actual reports. Its major advantages are excellent and reasonable structure, strong corrosion resistance, tight sealing, stable operation, low noise, and long service life

IHF fluoroplastic centrifugal pump product features:

IHF fluoroplastic centrifugal pump is designed according to word-of-mouth standards, and the pump body adopts a metal shell lined with perfluoroethylene propylene (F46);

; The pump cover, impeller, and shaft sleeve are all wrapped with metal inserts and sintered with fluoroplastic as a whole, and the shaft seal is mechanically sealed with external corrugated pipes; 90% (alumina ceramic or silicon nitride) is selected as the static ring; The moving ring is filled with PTFE material
