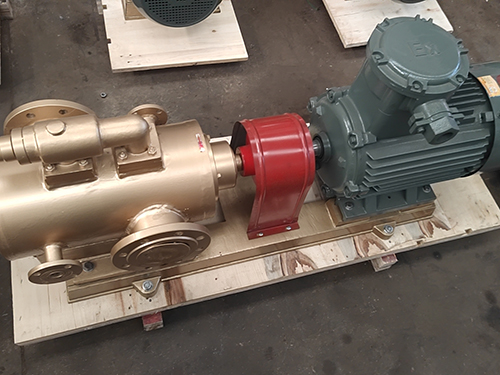

3QGB Three Screw Insulation Pump

The 3QGB three screw insulation pump is a positive displacement pump with a simple structure, small volume, allowing high speed, stable and excellent performance, small pressure pulsation, small flow product, allowing high speed, small pressure pulsation, and the principle of flow screw meshing. It relies on the rotating screws to mesh with each other inside the pump sleeve, suck in and seal the conveyed medium in the meshing chamber, and uniformly push it towards the outlet along the screw axis and form stable pressure at the outlet

The 3QGB three screw insulation pump is only suitable for conveying lubricating liquids without solid particles at room temperature, and can be used as a general conveying pump and a pressure supply pump in hydraulic transmission devices. The company's 3QGB series insulated high viscosity triple screw pump, which has undergone long-term research on equipment, is based on the triple screw pump_ Optimize the fit between the upper screw and the pump sleeve, as well as the fit between the main screw and the secondary screw, to enable them to transport high-temperature and high viscosity mediaThe 3QGB triple screw insulation pump is mainly used to transport high viscosity lubricating liquids, and is often used as a pump for transporting asphalt, heavy fuel oil, heavy gear oil, and heavy diesel. The pump is equipped with insulation chambers and channels inside, allowing gas or liquid to be used as a heat carrier, with a high working temperature of ≤ 350C. High viscosity media are generally transported by heating and reducing viscosity, with a conveying viscosity of generally 3.0-760mm/sThe 3QGB triple screw insulation pump is a positive displacement pump, with significant advantages such as simple structure, small volume, stable operation at high speeds, low pressure pulsation, stable flow rate, and low noise. It is precisely by utilizing the principle of screw meshing that the rotating screws mesh with each other inside the pump sleeve, sealing the conveyed medium in the meshing chamber and continuously and uniformly pushing it along the screw axis to the discharge port, providing stable pressure for the systemThe 3QGB three screw insulation pump is made of cast steel, with two options: insulation and non insulation. It is recommended to use a screw pump with insulation structure for high viscosity media. The inlet and outlet direction of the pump is usually left in and out according to the direction shown in the diagram. If the user has a request, it can also be made as left in and right outThe 3QGB three screw insulation pump has a strong sealing effect, using mechanical seals. Depending on the user's different media, different materials are selected for the mechanical seal friction parts. For high viscosity media, mechanical and high-performance hard alloy materials are selected to improve the sealing performance at high temperaturesThe 3QGB triple screw insulation pump is suitable for conveying various non corrosive oils and liquids similar to oil, with a viscosity of generally 30-760mm2/s. High viscosity media can be transported by heating and reducing viscosity, and its temperature generally does not exceed 350 ℃The 3QGB triple screw insulation pump is widely used in various industries such as petroleum, chemical fiber, metallurgy, machinery, power, machine tools, ships, glass, and highways. Suitable for conveying lubricating liquids such as fuel oil, lubricating oil, hydraulic oil, heavy oil, asphalt, and other similar oils
