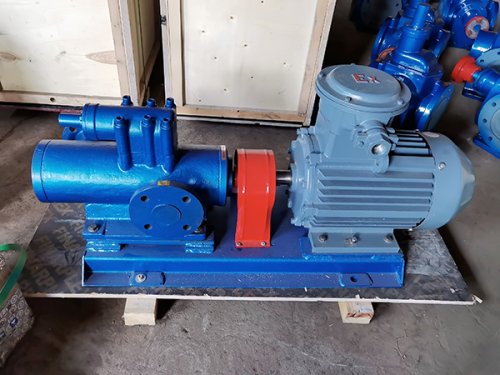

3G Three Screw Pump

The 3G three screw pump is a rotary displacement pump that mainly utilizes the principle of screw engagement. It relies on the rotating screws to mesh with each other inside the pump sleeve, sealing the conveyed medium in the meshing chamber and continuously and uniformly pushing it along the screw axis to the discharge port, providing stable pressure for the system. Three screw pumps are suitable for conveying various non corrosive oils, similar oils, and lubricating liquids. The viscosity range of transported liquids is generally 3.0-760mm2/S (1.2-100 ° E), and high viscosity media can be transported by heating and reducing viscosity. Its temperature generally does not exceed 350 ℃

3G Three screw pump features:

(1) Wide range of pressure and flow, flow range of 0.2-600m3/h, working pressure can reach 6.3MPa

(2) The types and viscosity range of liquids transported are wide(3) Due to the low inertia force of the rotating components inside the triple screw pump, high rotational speeds can be used(4) Inhalation is strong and has self suction ability(5) Uniform and continuous flow, low vibration, and low noise(6) Compared with other rotary pumps, it is less sensitive to incoming gases and pollutants(7) The three screw pump has a solid structure and is easy to install and maintain(8) Good self-priming ability(9) Due to the various structures available in the universal combination series of components, it can be used for horizontal, flange, and vertical installationsAccording to the needs of the conveyed medium, heating or cooling structures can also be provided

The purpose and application range of 3G triple screw pump:

It can be used as a pump and delivery pump in heating equipment.

Used as a conveying and refueling pump in oil transportation systems

It can be used as a hydraulic pump, lubrication pump, and remote-controlled motor pump in the mechanical industry.

It can be used as a liquid supply pump in the chemical, petrochemical, and food industriesUsed on ships as transfer pumps, booster pumps, fuel injection and lubrication pumps, and marine pumpsWidely used in various industries such as petroleum, electricity, chemical fiber, shipbuilding, metallurgy, glass, machinery, machine tools, highways, etcSuitable for conveying lubricating liquids such as fuel oil, hydraulic oil, lubricating oil, asphalt, crude oil, and other similar oils
