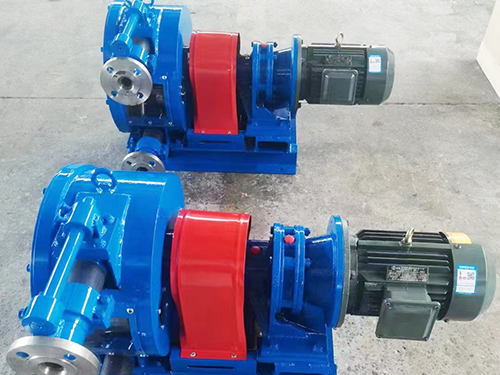

Industrial hose pump

Working principle of industrial hose pump: A pair of pressure rollers rotate along a made rubber tube, flattening the tube. Under the force of its own elasticity and side guide, the tube returns to its original state. At this time, a high vacuum is generated inside the tube to suck the material into the tube cavity; Then, the material is discharged from the tube under the subsequent pressure and compression. In this cycle, materials are constantly being sucked in and discharged.

Characteristics and applications of industrial hose pumps:

1. A trustworthy unsealed structure that prevents any leakage;

2. Good self-priming ability, with a clear water suction distance of up to 8 meters;

3. The fluid pumped only comes into contact with the hose, thus it can transport various viscosity, density, corrosive, and abrasive fluid materials;

4. It can transport liquid materials containing solid particles, crystals, fibrous substances, and other impurities without any blockage or malfunction;

5. It can operate in both forward and reverse directions and has self-cleaning ability;

6. The pump does not need to be filled when starting, making it particularly convenient for gap operation;

7. Low vibration and noise, can be fixed on a small cart for mobile operation;

8. Simple structure, convenient operation and maintenance;

9. Low power consumption, good volumetric efficiency, and good metering ability.

A hose pump, also known as a peristaltic pump. In order to eliminate the risk of fluid contamination or fluid contamination of the pump body, only the hose contacts the medium in the entire pump device. In general, hose pumps use naturally growing rubber hoses. Both the inner and outer layers are made of intact and smooth natural growing rubber, which is designed to effectively prevent wear and tear. Suitable for media with low corrosiveness but high wear resistance, such as mud and inorganic substances. Moreover, it is generally suitable as a medium for fats, oils or fats, as well as useful chemical substances. The inner layer is made of rubber, while the outer layer is made of naturally growing rubber or composite rubber.

There is also a grade of rubber hose pump, which has obtained FDA certification in the United States. Its inner rubber layer meets food hygiene requirements and also meets EHEDG or other hygiene requirements.

There is also a EPDM hose pump, which is generally suitable for the vast majority of corrosive chemicals and inorganic substances. The inner rubber layer is composed of EPDM rubber, and the outer layer is also a complete EPDM rubber. This type of hose has strong resistance to chemical corrosion.

And CSM hose pump, which is suitable for particularly corrosive chemical media, such as strong oxidizing solvents. The inner layer of the hose is CSM, and the outer layer is naturally growing rubber. The operating temperature reaches 85 ℃/185 ° F.

The industrial hose pump series products are a new, multifunctional, and multi-purpose industrial pump that has absorbed excellent foreign technology and equipment. It thoroughly breaks away from the traditional operation mode of pump impeller and shaft seal, and has great advantages in conveying media with high viscosity, corrosion, and fluid impurities. It is a completely different principle from traditional conveying pumps and has a wide range of applications.
